B77 MK III Stereo Tape Recorder – Deep Purple Limited Edition

LIMITED TO 25 PIECES WORLDWIDE

EXCLUSIVE DEEP PURPLE DESIGN

SIGNED AND NUMBERED BY DEEP PURPLE BAND MEMBERS

INCLUDES EXCLUSIVE MASTER TAPE OF ALBUM SPLAT!

ELECTRONIC BRAKING SYSTEM

HANDCRAFTED AT THE REVOX FACTORY IN VILLINGEN – MADE IN GERMANY

ORIGINAL REVOX THREE-MOTOR DRIVE WITH DIRECT DRIVE AND SERVO CONTROL

SPECIAL CAPSTAN SHAFT AND NEW PRESSURE ROLLER WITH DOUBLE BALL BEARING

IMPROVED ORIGINAL REVOX TAPE HEADS

BALANCED XLR INPUT/OUTPUT

DIGITAL COUNTER AND VU METER

SWITCH FOR CCIR/NAB EQUALIZATION

OPTION TO SET DIFFERENT MAGNETIZATION DURING PLAYBACK AND RECORDING

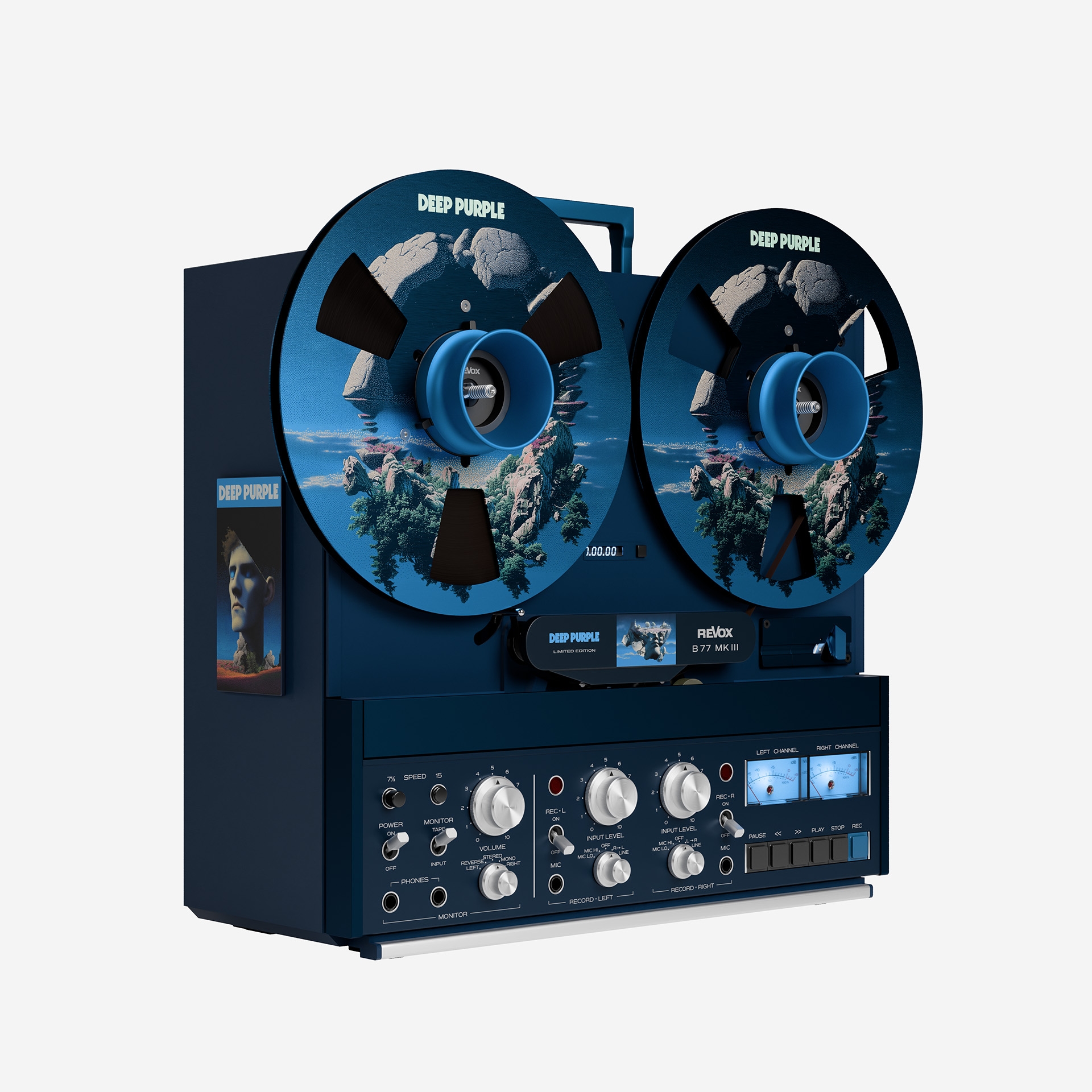

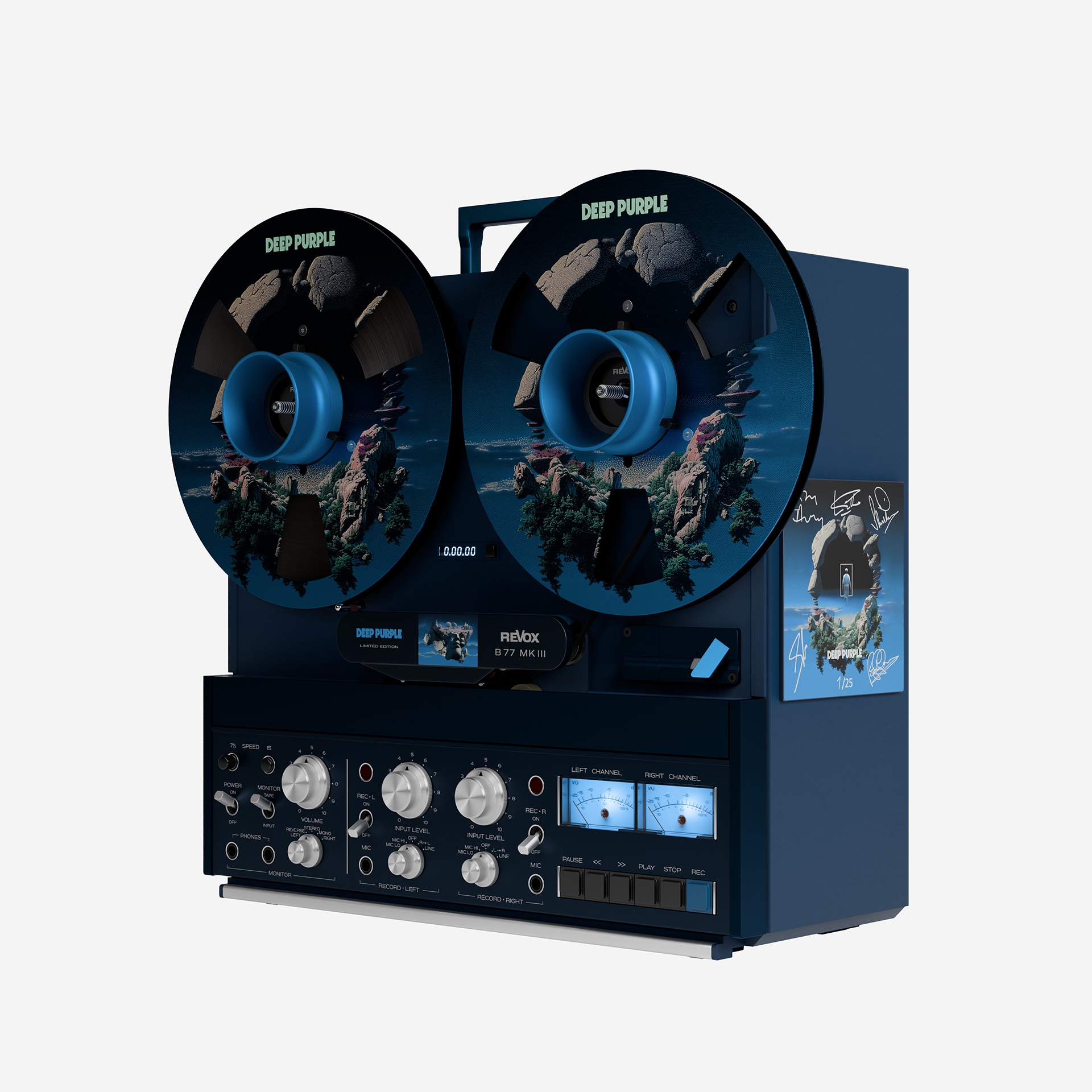

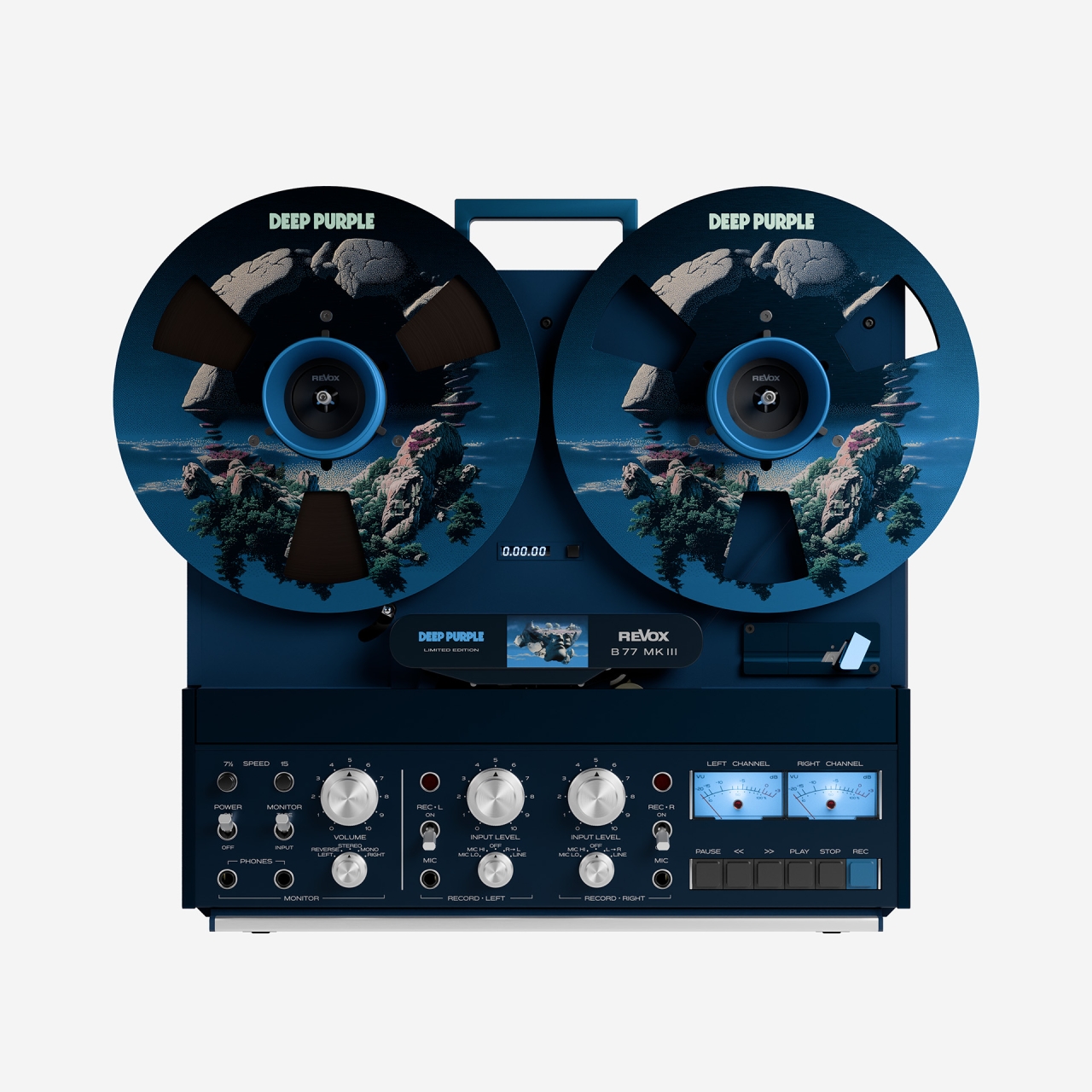

B77 MK III Stereo Tape Recorder
Deep Purple Limited Edition

In a special collaboration with Deep Purple, Revox has redesigned twenty-five (25) exceptional B77 MK III tape recorders to feature the unique Deep Purple look, both visually and in terms of feel. Each unit is autographed by the band members — Ian Gillan, Roger Glover, Ian Paice, Don Airey, and Simon McBride.

The collaboration was established to experience Deep Purple’s music in the same exceptional quality as it was originally recorded by the musicians in the studio, using Revox’s high-quality audio products which deliver authentic studio sound quality at home.

The design of the limited-edition products, including the accompanying special audio reels, harmonizes perfectly with the outstanding visual design of the forthcoming album SPLAT! (out July 3rd, 2026).

Limited Edition — In a Class of Its Own

The B77 MK III tape recorder is a modern icon and a historic milestone in analog audio technology. It symbolizes the successful return of analog audio enjoyment and sets new standards for outstanding sound fidelity as well as an innovative and sustainable design. It is not just a tape machine; it is a testament to audiophile excellence.

As an additional feature exclusive to this edition, the mechanical braking system is equipped with an electronic braking function. The mechanical and electronic brakes work together to provide even better and more precise control and stopping at the desired point with low latency. In the event of electronic failure or a sudden power outage, the system will always brake safely — your valuable recordings are optimally protected.

Handcrafted at the Revox factory in Villingen – Made in Germany.

Included in the Package

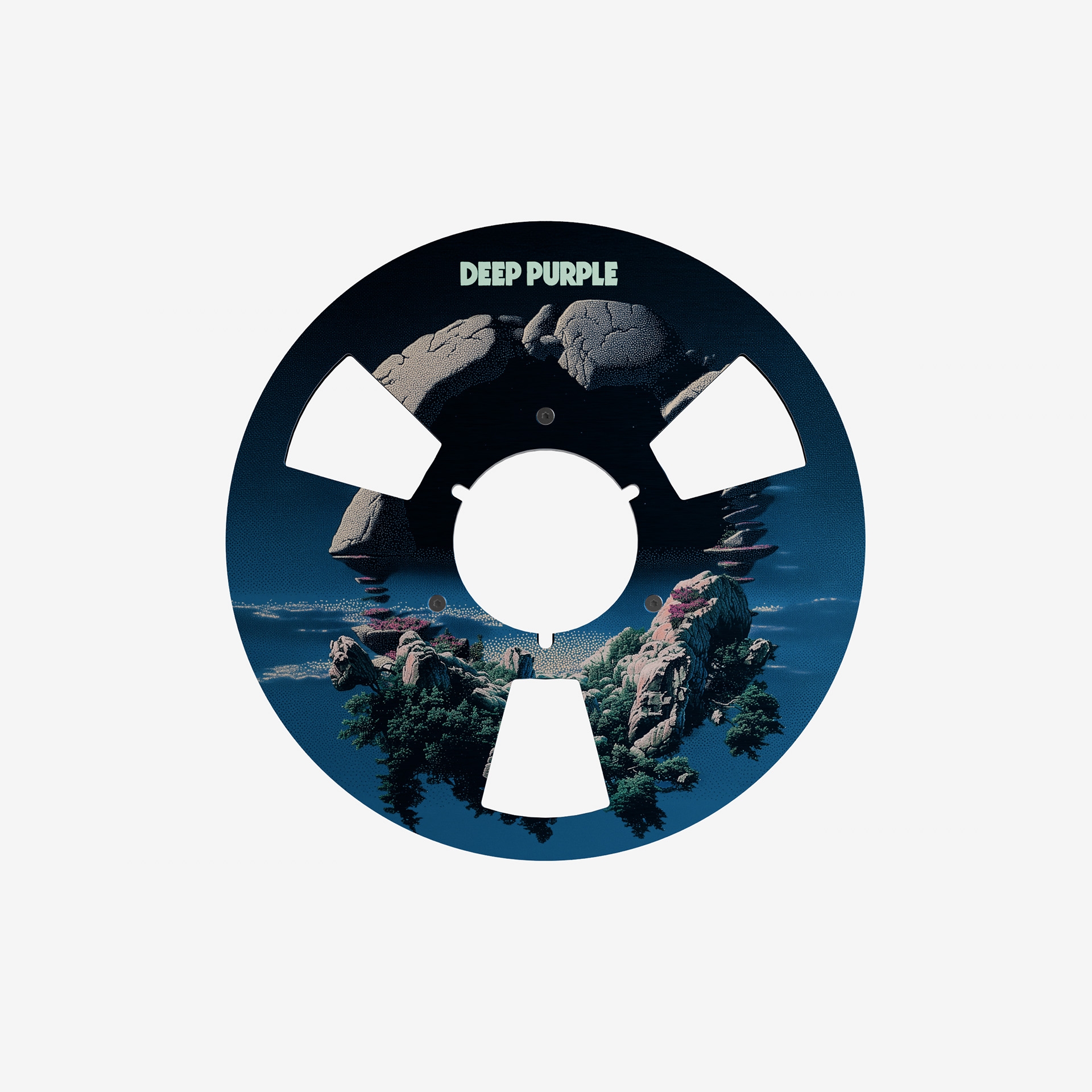

Included in the package is an exclusive master tape of the album SPLAT! in the very best audiophile sound quality on a limited-edition reel. It also includes a high-quality blank reel in a limited-edition Deep Purple design, exclusively designed NAB adapters, previously unpublished photos, and a certificate of authenticity.

After placing your order, you will receive a certificate. 2-year warranty (extended to 3 years upon successful online registration of the product).

About the Deep Purple Album SPLAT!

SPLAT! is Deep Purple’s powerful new studio album, produced by Bob Ezrin (Pink Floyd, Kiss, Lou Reed). Rooted in the band’s classic DNA but driven by a fiercely contemporary energy, it is their hardest album in decades: heavy, direct, and recorded live in the studio.

At the heart of SPLAT! is an idea conceived by Ian Gillan. Rather than treating the end as destruction, the album imagines it as transformation: SPLAT! explores the end of humanity not in any crude apocalyptic sense but as a metamorphosis beyond physical existence.

About the Revox B77 MK III

The Revox B77 is a true icon in the audio world. Famous and awarded for its outstanding sound reproduction and high-quality, sustainable construction, it sets the standard for analog audiophile excellence. As a Revox product, it reproduces music exactly as the artists recorded it in the studio.

With the B77 MK III, the entire audio electronics have been optimized with the components and simulation options available today. All new details — audio technology for even better sound reproduction and recording quality, precisely manufactured high-quality Revox pickups, a digital counter, the ability to play all common tape standards, and a wide range of connection and expansion options — have been perfected by Revox developers, technicians, and designers.

Importantly, it was always a priority to keep the analog products analog: there are no semiconductors (chips) with software in the entire B77.

Built for Eternity

Like its predecessors, the B77 MK III is manufactured to the highest quality standards as an audiophile masterpiece and visual work of art. The high level of production and quality control means no more than 20 machines can be produced per month.

Created for the Extraordinary

This new Revox B77 is created for those who rely on the incomparable sound and manufacturing quality of Revox. A must for every music lover who wants to experience the best possible music quality at home.

The Perfect Interplay

The B77 MK III and the new Revox Analog Master Tapes Collection are both manufactured in the Revox KLANGWERK in Villingen for perfect interplay — a significant step for the analog community.

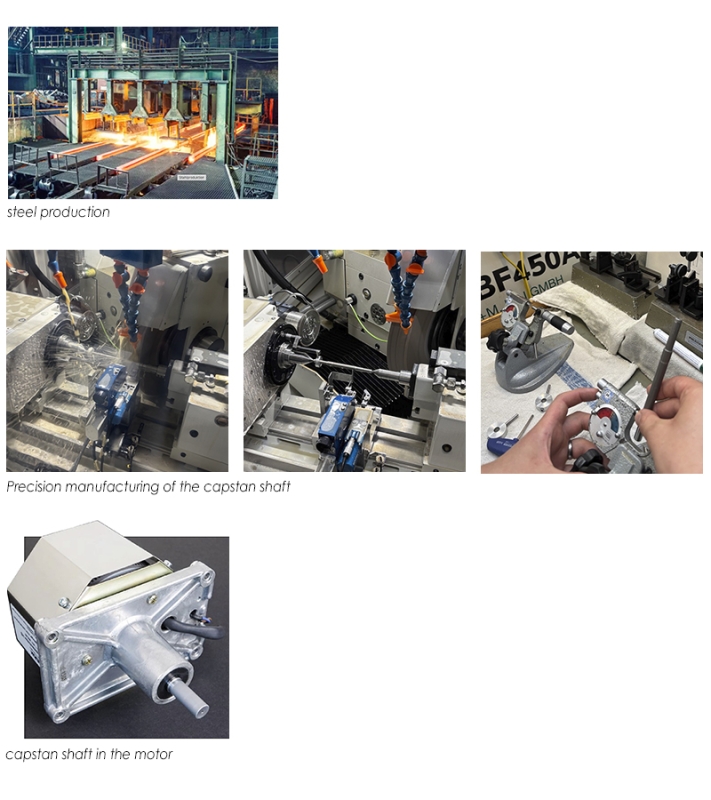

Special Capstan Shaft and New Pressure Roller

Seventeen steps are required to manufacture the high-precision capstan shaft. Swiss Steel produced five tons of very special steel specifically for its manufacture — 17 work steps in production alone.

Together with the new pressure roller, made of light-colored rubber and guided by two ball bearings, the capstan shaft moves the belt with significantly improved stability and precision compared to conventional bearings.

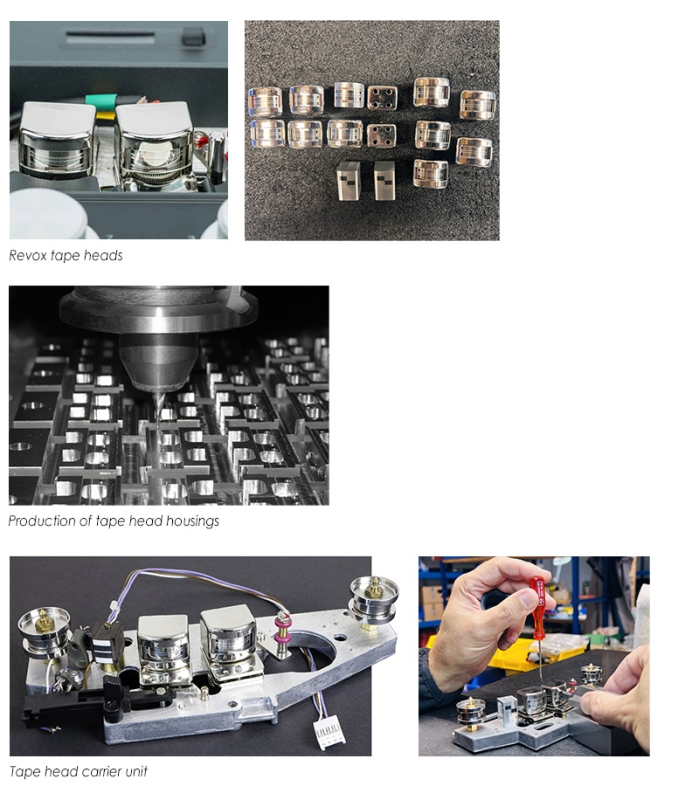

Improved Original Revox Tape Heads

Revox tape machines have a total of three tape heads: one reproducing head, one recording head, and one erase head — a design that enables rear band control. The gap of the playback sound head measures just 2 µm (0.002 mm).

The core packages are made of high-quality magnetic material with above-average permeability and minimal losses, achieving optimum sound voltages and very low distortion. Compared to the B77 MK II, the B77 MK III uses improved tape heads with a significantly longer service life.

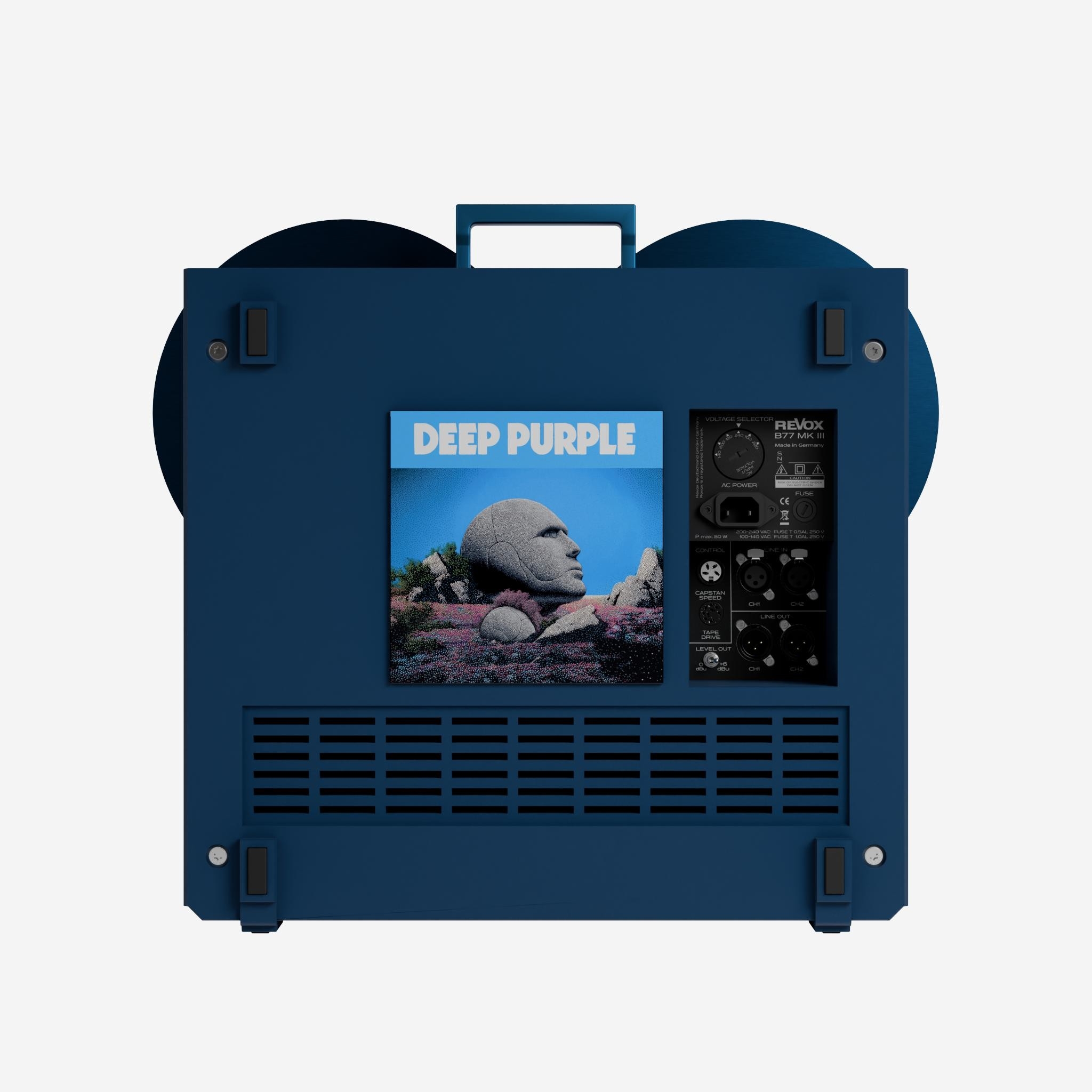

Connections

XLR (External Live Return) connectors are characterized by their robustness, reliability, and interference-free signal transmission. The balanced XLR connection ensures the best sound and high-quality transmission — in professional recording studios as well as in private audio systems. Signals can be transmitted via XLR inputs/outputs without loss of quality or noise.

The connection concept is suitable for both recording studio connections and private home systems, with a switch for toggling between the two. The headphone amplifier is of the highest quality and suitable for both low and high headphone impedances.

Digital Counter and VU Meter

The digital counter offers two modes: Mode 1 is a standard counter; Mode 2 displays time, calculated from the current meter reading and the set belt speed of 19 cm/s or 38 cm/s.

Revox VU meters are precisely calibrated for maximum precision. When the LED flashes during recording and playback, the optimum level has been reached. If the LED lights up continuously, this indicates overmodulation — making it easy to achieve recordings with maximum dynamics. The indicator also works during playback.

Optional Expansion

A Revox Interface Multiuser 3.0 B77 is available for the integration and control of the B77 MK III, even via app or wall operation, in a Revox multiuser audio solution.
